上海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)盛(sheng)閥(fa)(fa)(fa)(fa)(fa)(fa)門制造(zao)有限公司主要生產船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)，可提供(gong)船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)價(jia)格(ge)，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)說明書，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)實物圖，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)結構(gou)圖，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)外形尺寸(cun)，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)執(zhi)行標準，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)工(gong)作原理，船(chuan)用(yong)(yong)(yong)(yong)鑄(zhu)(zhu)(zhu)鋼(gang)吸(xi)(xi)入通海(hai)(hai)(hai)閥(fa)(fa)(fa)(fa)(fa)(fa)作用(yong)(yong)(yong)(yong)特(te)點。

船用鑄鋼吸入通海閥性能規范Technical Data

公稱壓力 Nominal Pressure (MPa) 公稱通徑 Nominal Diameter (mm) 適用介質 Applicable Medium 0 4 50 - 400 海水、淡水 　 50 - 500 Sea water. Fresh water

船用鑄鋼吸入通海閥主要零部件材質Materials of Main Parts

零件名稱Parts Name 材料Materia 　 　 名稱Name 牌號Marks 閥體、閥蓋Body/Cover 鑄鋼Cast Steel ZG230-450 閥盤、閥座Disc/Seat 鑄錫青銅Cast Tin Bronze ZCuSn102n2 閥桿Stem 鋁青銅Aluminum Bronze CuA19Mn2

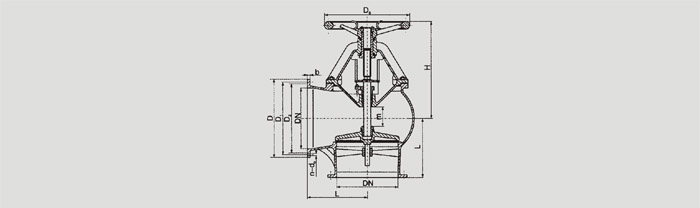

船用鑄鋼吸入通海閥B型基本尺寸Dimensions

公稱 通徑 結構尺寸 Structure Dimension 法蘭Flange 螺栓Bont 壁厚 Thickness 手輪 Hand wheel 升程 Lift Range 參考重量 Weight DN(mm) L H D Di D2 b Do n個 Th. f DO m (kg) 50 125 230 135 103 84 13 15 6 M14 7 140 16 14.4 65 145 240 155 123 104 13 15 6 M14 7 140 20 17.6 80 155 260 170 138 118 14 15 8 M14 7 160 24 16.8 100 175 280 190 158 138 14 15 8 M14 8 180 30 21.8 125 200 310 215 183 164 14 15 10 M14 8 200 40 30.8 150 225 340 240 208 190 14 15 12 M14 9 225 48 47.8 200 275 375 295 264 247 15 15 12 M14 9 280 60 68.4 250 325 425 365 327 306 16 17 14 M16 10 360 70 104.0 300 375 480 430 386 360 19 22 14 M20 11 400 78 167.0 350 425 560 480 436 410 20 22 16 M20 11 450 100 221.0 400 475 640 530 486 460 21 22 16 M20 12 500 1 10 292.0

船用鑄鋼吸入通海閥BS犁基本尺寸Dimensions

公稱 通徑 結構尺寸 Structure Dimension 法蘭Flange 螺栓Bont 壁厚 Thickness 手輪 Hand wheel 升程 Lift Range 參考重量 Weight DN(mm) L H D Di D2 b Do n個 Th. f DO m (kg) 50 125 230 140 110 90 16 14 4 M12 7 140 16 15 1 65 145 240 160 130 110 16 14 4 M12 7 140 20 17 6 80 155 260 190 150 128 18 18 4 M16 7 160 24 21 0 100 175 280 210 170 148 18 18 4 M16 8 180 30 25 7 125 200 310 240 200 178 20 18 8 M16 8 200 40 36 5 150 225 340 265 225 202 20 18 8 M16 9 225 48 59 8 200 275 375 320 280 258 22 18 8 M16 9 280 60 80 7 250 325 425 375 335 312 24 18 12 M16 10 360 70 121 0 300 375 480 440 395 365 24 22 12 M20 11 400 78 184 0 350 425 560 490 445 415 24 22 12 M20 11 450 100 247 0 400 475 640 540 495 465 24 22 16 M20 12 500 1 10 324 0 450 500 720 595 550 520 24 22 16 M20 12 550 150 467 2 500 525 800 645 600 570 26 22 20 M20 13 600 155 550 9
